Test your old deadbolt. The lock must turn freely without any pressure being put on the door.
Remove the old lock and strikeplate. Please retain your original lock.
Install the Deadbolt+, ensuring the latch is oriented as shown below:
Rotate the spindle into a vertical position.

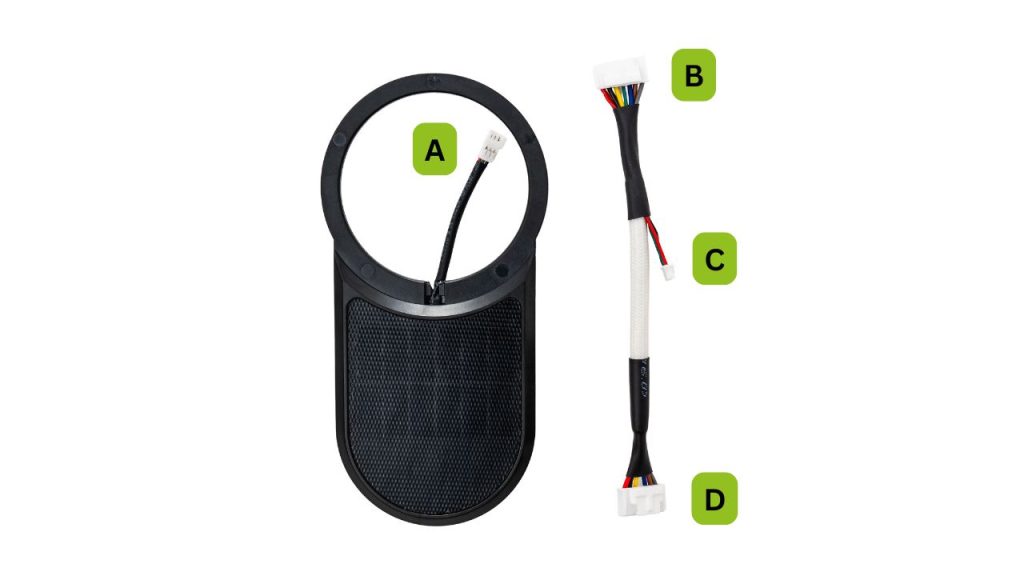

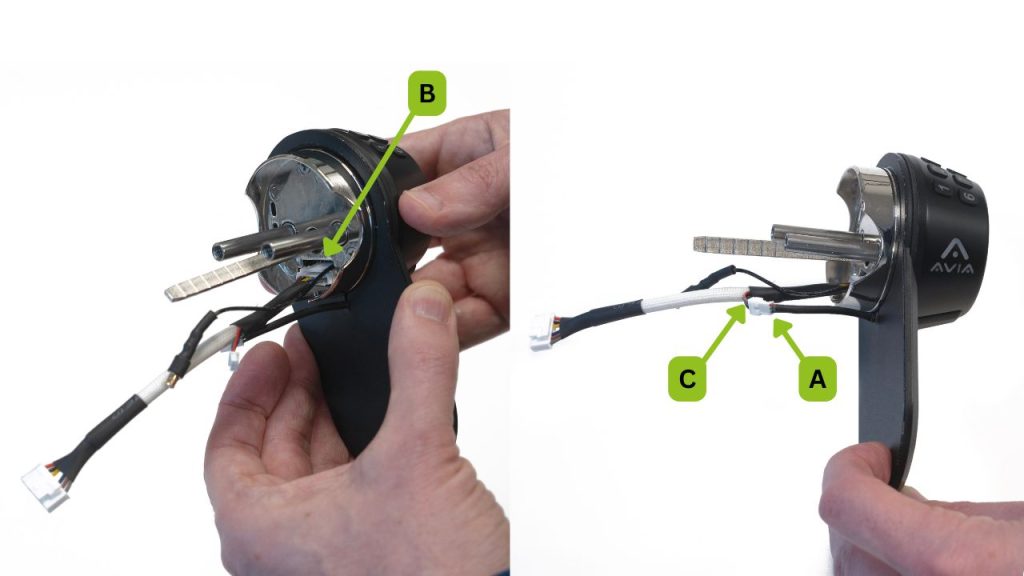

Feed the cables under the latch.

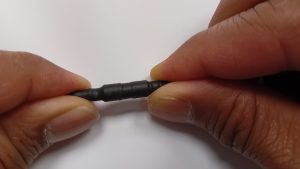

Connect the black NFL lead using the attached connectors.
Feed the second cable through the backplate.
Fix the backplate to the lock using the supplied screws.
Use a suitable fixing to secure the backplate to the door.
Next, pick up the black motor module, and rotate the knob to the ‘Unlocked’ position and then remove the battery cover.
Plug in the white motor module cable into the back of the motor module.
Place motor module onto the backplate, and secure using supplied screws.
Test the operation of the lock by rotating the thumbturn on the motor module, and then also using the manual key on the front of the Deadbolt+ lock.
Fit the faceplate using supplied fixings.
Close the door and test for smooth operation.
Install batteries and refit battery cover.
